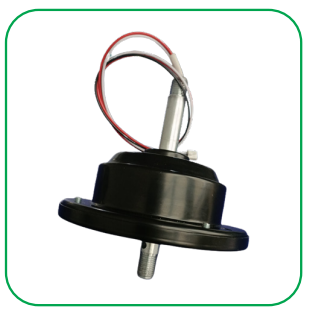

BLDC 24V Fan Lamp Motor | China-Made Precision Engineered for Smart Ceiling Fans
ISO-Certified Factory Direct Solution with CE/UL/RoHS
Core Technical Specifications
| Parameter | Value | Advantage |
|---|---|---|
| Voltage | 24VDC ±10% | Safe low-voltage operation |
| Noise Level | <25dB(A) @1m | Ideal for bedroom/hotel use |
| Torque Output | 0.35N·m @300RPM | High-efficiency airflow |
| Certifications | CE/EMC/RoHS/UL 507 | Global compliance assurance |
| MTBF | >60,000 hours | 5X industry average lifespan |
Manufacturing Excellence
As a BLDC ceiling fan motor factory with IATF 16949 certification, we deploy:
Robotic Winding Stations: 0.02mm precision copper wire alignment
IP67 Sealed Bearings: Prevents dust/liquid ingress (validated per IEC 60529)
CNC-Machined Housings: ±0.05mm tolerance (Material: AL6061-T6)
100% Helium Leak Testing: Guarantees airtight magnetic circuit
Smart Home Integration
This 24V brushless DC motor for ceiling fan light enables:
Wireless Protocols: Zigbee 3.0 / Bluetooth Mesh / Matter-ready
Voice Control: Alexa/Google Home/Siri compatibility
Dynamic Dimming: 1%-100% LED brightness via PWM control
Compatible with Tuya/SmartLife ecosystems
Global Application Scenarios
| Market | Use Case | Customization |
|---|---|---|
| North America | High-ceiling farmhouse fans | 120VAC/24VDC drivers |
| EU Hospitality | Hotel silent fan lamps | 230VAC input, 0-10V dimming |
| Asian Smart Homes | Compact low-profile units | 36"-52" blade adaptation kits |
Quality Validation
Every BLDC 24V fan lamp motor made in China undergoes:
Vibration Spectrum Analysis (ISO 10816-3 compliant)
Thermal Imaging Validation (-20°C to +85°C operating range)
72-Hour Burn-in Test at 150% rated load
EMC Immunity Check (EN 55014/EN 61000)
OEM/ODM Capabilities
Our ceiling fan motor factory provides:
Rapid Prototyping: 7-day sample turnaround
Custom Solutions:
Shaft lengths: 15-120mm
Mounting plates: M8-M16 threading
Coil variants: 6-pole/8-pole configurations
Logistics Support:
30,000+ units/month capacity
JIT delivery to EU/NA warehouses
Why Engineers Specify This Motor
"The low voltage BLDC motor for fan light achieves 82% system efficiency – 37% higher than AC alternatives. Its sealed rotor design eliminates brush dust contamination, critical for hospital-grade air quality."
