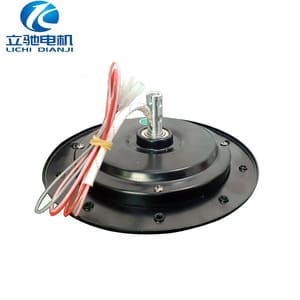

220V High-Torque BLDC Fan Light Motor

As a leading Vietnamese BLDC ceiling fan motor factory, we introduce our latest 220V high-voltage, high-torque, high-speed brushless DC motor engineered for fan-light applications. Combining pure copper winding ceiling fan motor construction with advanced variable frequency motor for ceiling fan control, this solution delivers silent operation, precise speed regulation, and robust OEM capacity for any global project.

1. Product Overview

• Voltage & Control: Native 220V AC brushless DC design with built-in variable-frequency drive. Also available as BLDC 24V fan lamp motor made in China for low-voltage lighting fans.

• Pure Copper Windings: 100% oxygen-free copper ensures optimal conductivity, minimal heat loss, and extended service life.

• High Torque & Speed: Rated torque up to 0.8 N·m and top speeds of 3,000 RPM for powerful airflow.

• Silent Operation: Developed in our quiet 36w ceiling fan motor factory, noise levels stay below 25 dB thanks to precision-balanced rotors and double-sealed ball bearings.

2. Advanced Variable-Frequency Technology

Our variable-frequency motor for ceiling fan enables:

• Smooth multi-speed control (5–9 speed steps)

• Forward/reverse rotation at the push of a button

• Soft-start and soft-stop functions to eliminate mechanical shocks

• Timer settings (1–8 hours) for energy saving and comfort

3. Mechanical & Electrical Specifications

• Power Consumption: 20–36 W (model dependent)

• Coil Resistance: Optimized for stable current draw and minimal heat buildup

• Bearing System: Dual ball-bearing configuration for long life and ultra-quiet operation

• Protection Features: Overcurrent, overvoltage, undervoltage, and locked-rotor safety circuits

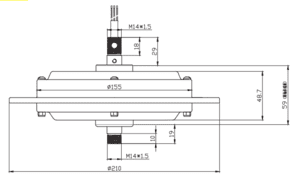

• Dimensions & Mounting: Standard ceiling rose footprint with customizable shaft length and mounting-hole pattern

4. Customization & Integration

As a full-service Vietnamese BLDC ceiling fan motor factory, we offer:

• Voltage variants: 24V DC / 110V AC / 220V AC

• Shaft length and diameter adjustments to fit unique fan blade assemblies

• External rotor adaptations for five-leaf or six-leaf blade designs

• OEM branding, labeling, and packaging for turnkey market entry

5. Quality Assurance & Production Capacity

• In-house Winding & Balancing: Automated pure copper winding machines and dynamic balancing rigs deliver consistent performance.

• Rigorous Testing: Each motor undergoes electrical performance checks, endurance cycling (100 hours minimum), and acoustic noise measurement.

• Certifications: CE, RoHS, CB, and UL approvals.

• Capacity: Monthly output exceeding 60,000 units to support bulk orders and fast turnaround.

6. Application Scenarios

• Residential: Modern homes, smart-home ceiling fans, and integrated fan-light combos

• Commercial: Restaurants, cafes, and hotel lobbies requiring quiet, energy-efficient ventilation

• Specialty Lighting: Decorative fan-light fixtures in galleries, boutiques, and wellness centers

• Retrofits & Upgrades: Replacing outdated AC motors with high-efficiency brushless DC systems

Conclusion

Our Vietnamese Style 220V High-Voltage High-Torque High-Speed Brushless DC Variable-Frequency Fan Light Motor brings together premium materials, cutting-edge control, and whisper-quiet operation. Whether you’re sourcing a BLDC 24V fan lamp motor made in China or a high-performance pure copper winding ceiling fan motor, trust our quiet 36w ceiling fan motor factory and variable frequency motor for ceiling fan expertise to deliver reliable, energy-saving solutions at scale.
