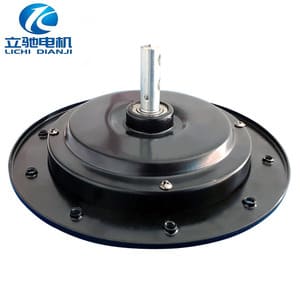

As a trusted DC motor Ceiling Fan with Light China factory, we present the 210 mm three-phase BLDC ceiling fan motor: a compact, energy-efficient drive solution optimized for household and commercial fan-light applications. With a fully enclosed external rotor, dual ball bearings, and pure-copper windings, this motor delivers whisper-quiet operation and stable torque across 24 V, 36 V, and 48 V systems—perfect for smart controllers, remote modules, and app-based speed controls.

 Key Features

• Ultra-Quiet Performance: Noise levels under 35 dB(A) thanks to precision rotor balancing and high-quality bearings.

• High Torque Output: Consistent starting torque supports six-leaf ceiling fans up to 60 inches in diameter.

• Wide Voltage Compatibility: Runs seamlessly on 24 V, 36 V, or 48 V DC, enabling flexible integration.

• External Rotor Design: Enhanced heat dissipation for a temperature rise below 50 °C at full load.

• Long Service Life: MTBF > 30,000 hours with corrosion-resistant coatings and robust insulation.

• Low Vibration: Dynamic balancing and rigid housing ensure smooth, wobble-free operation.

Technical Specifications

• Model: BLDC-210-3P Series

• Rated Voltage: 24 V / 36 V / 48 V DC

• No-Load Speed: 1,200 rpm (nominal)

• Rated Torque: 0.25 N·m

• Rated Current: ≤ 1.2 A

• Noise Level: ≤ 35 dB(A)

• Bearing Type: Double sealed ball bearings

• Rotor Diameter: 210 mm; Housing Length: 45 mm

• Winding: 100% oxygen-free copper, Class H insulation

• Protection: IP54 standard (optional IP65 upgrade)

• Shaft: 8 mm with keyway; custom lengths available

Applications

• Six-Leaf & Five-Leaf Ceiling Fans: Ideal for living rooms, bedrooms, offices, restaurants, and hospitality venues.

• Fan-Light Combos: Engineered for seamless integration in ceiling fan models with built-in LED/halogen lighting.

• Smart Ceiling Fans: Compatible with IoT controllers, voice-activation modules, and remote systems.

• Commercial Ventilation: Suitable for low‐speed exhaust or air‐circulation fans in cafés, retail stores, and studios.

Production Capacity & Quality

As a huge amount ceiling fan motor factory, we operate 12 CNC winding lines and can produce over 30,000 ceiling fan motors per month. Every DC motor for Ceiling Fan from China undergoes:

• Incoming Material Inspection – Raw copper, steel laminations, and electronic modules.

• In-Process Testing – Dynamic balancing, insulation resistance, and winding pattern verification.

• Final Performance Tests – Load endurance, noise measurement, and thermal cycling.

• Certification Support – IEC, CE, RoHS, UL, and bespoke test reports on request.

Customization & OEM Services

Our import BLDC ceiling fan motor factory specializes in OEM DC motor for Ceiling Fan from China solutions:

• Bracket & Flange Variations – Tailor mounting dimensions to your fan housing.

• Cable & Connector Options – Pre-wired lead lengths, plug types, and terminal blocks.

• Shaft Modifications – Custom diameters, lengths, and keyway profiles.

• Voltage & Speed Tuning – Programmed BLDC controllers for multiple speed levels.

• Logo & Packaging – Private-label motor housings, color finishes, and export-ready cartons.

Why Choose Our 210 mm BLDC Ceiling Fan Motor?

• Proven Reliability – Deployed by top fan-light brands across Southeast Asia, the Middle East, and South America.

• Cost-Effective Volume Supply – Benefit from factory-direct pricing and large-scale production capacity.

• Technical Expertise – Over 15 years of motor R&D, backed by dedicated application engineers.

• Energy Savings – Up to 40% lower consumption versus traditional AC induction motors.

• Green Manufacturing – RoHS-compliant materials and lean production methods reduce carbon footprint.

Ordering & Support

• Lead Time: 30 days for standard models; 45–60 days for customized variants.

• Minimum Order Quantity: 500 pcs per specification (negotiable for stock items).

• Packaging: Export-grade cartons with foam inserts and anti-moisture bag.

• Logistics: FOB Shenzhen, CIF, or DDP to major ports worldwide.

• Technical Assistance: Installation guides, wiring diagrams, and troubleshooting provided free of charge.

Partner with our six leaf ceiling fan motor factory and import BLDC ceiling fan motor factory to power your next-generation ceiling fan designs. Contact us today for samples, bulk quotes, or custom engineering support.
